Friday, September 14, 2012

This operation can not be performed because the specific virtual disk could not be found

You will get the error message while starting the VM on XenServer "This operation can not be performed because the specific virtual disk could not be found"


After ejecting the mounted ISO VM booted normally


Thursday, September 13, 2012

Citrix Personal vDisk (565) dynamic expansion

Citrix has released latest version of PVD (Personal vDisk ) 565 which support dynamic expansion . What does it mean to you? Say you have created PVD of 10GB and for some reason you ran out of space


Space distribution is shown below


Now lets expand this P: drive from 10GB  to 15GB


And this is how space distribution changes


Now say C: drive is full


Reboot  the VM and C: drive is expanded automatically


This has been explained here

XenApp shadowing does not logoff user session

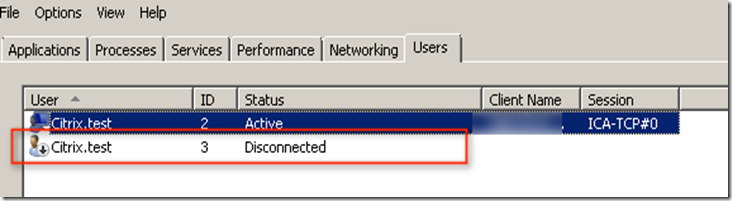

When helpdesk team close the shadowing session ICA shadowing session does not logoff from the server. Because of this reason no more shadowing will be allowed on this server by same users. Let's find out how does it happen . I am shadowing "citrix.test" using user "citrix.test" . This is what shown under App control center


When this session is terminated via Ctrl+ *


This will still be shown under App Center as disconnected

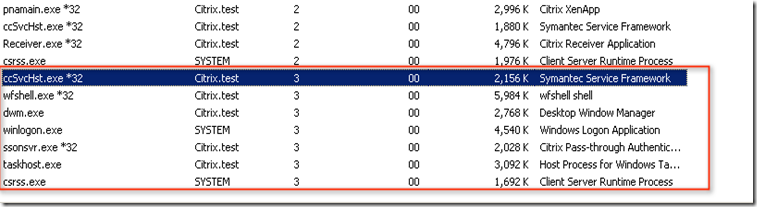

This disconnected session does not logoff  shadowing session gracefully. After looking at task manager it has been found that couple of process which was still running with PID


we were not able to kill Symantec Service Framework service even using local admin or domain admin


Created GPO and deliver following key using "Create" option

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Citrix\wfshell\TWI

Value Name:LogoffCheckSysModules
Type:
REG_SZ
String: ccSvcHst.exe


as explained in CTX891671. After this registry changes Ctrl + * use to close the shadowing session.

How to set alias for Desktop Director URL

When desktop director is installed , it can be accessed via http://<server name >/Desktopdirector  . But DNS will not allow you to create alias , so you will be always need to type http://<server name >/Desktopdirector  . In order to get access via just server ie.  http://<Servername> we need to make change in IIS or create Default.htm file under wwwroot folder. Content of Default.htm will be
Other way of doing is to redirect http request from http://<servername>/desktopdirector to http://<servername> from IIS

Friday, September 7, 2012

ClientName variable as hostname via Citrix AGEE

When hosted desktop is launch via AGEE it display the host name with something like WI_  . This makes some of the application behave weird which uses this variable. Mainly some CRM application which uses this hostname . This can be verified via running set command.


To fix this small change on WI can help . Uncheck the below options


And after that when application like hosted shared desktop is launched it display the correct CLIENTNAME="workstationname"
